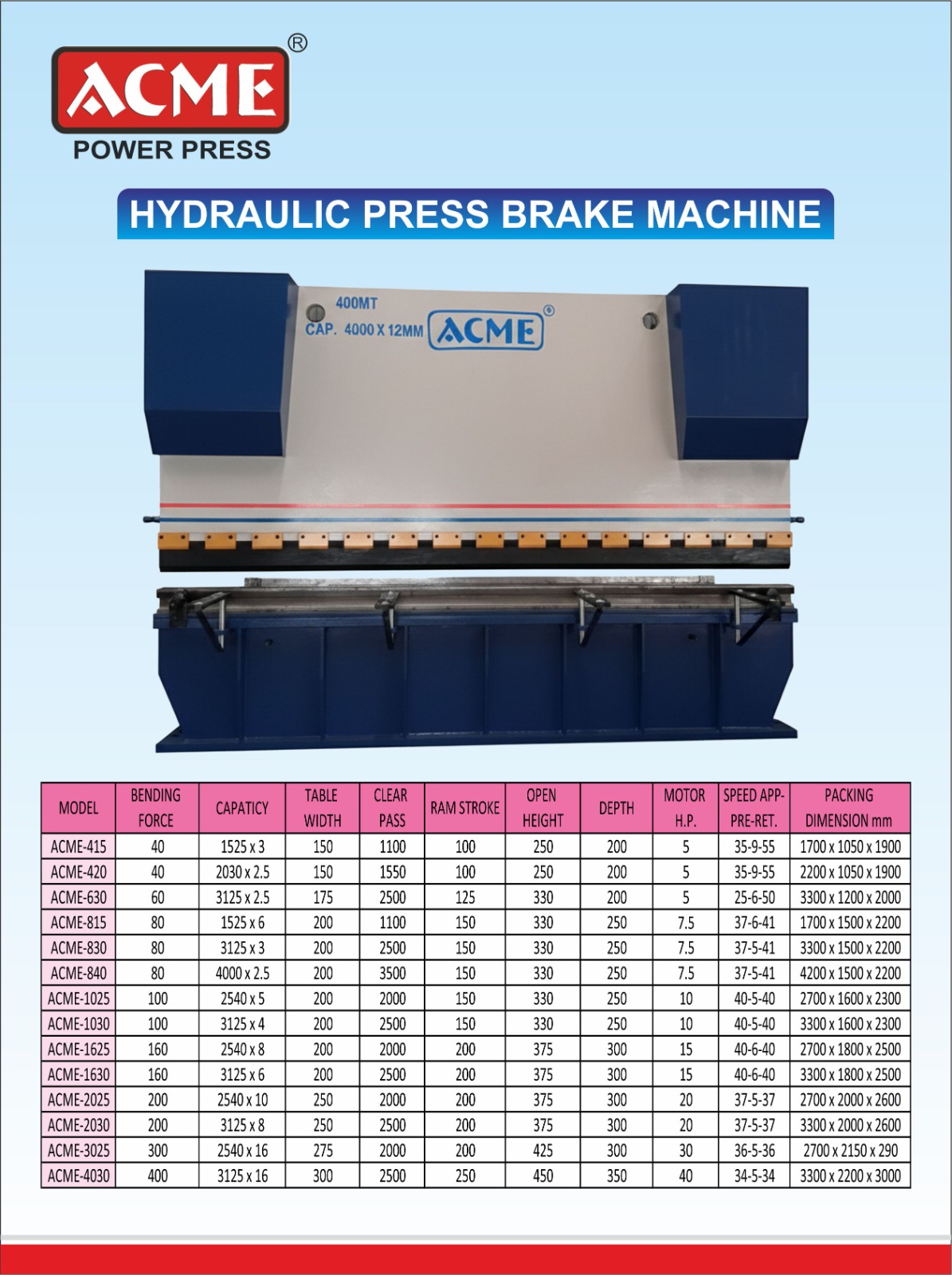

Nc Press Brake Machine
In StockThe NC Press Brake Machine is a precision-engineered metal bending solution designed for accurate and efficient sheet metal forming operations. Equipped with a numerical control (NC) system, it enables precise adjustment of bending angles, stroke depth, and back gauge positioning, ensuring consistent and repeatable bending result.
Built with a strong and rigid frame structure, this machine provides excellent stability, smooth performance, and long service life even in continuous industrial environments. It is widely used in sheet metal fabrication workshops, automotive component manufacturing, electrical enclosure production, and heavy engineering industries.
Nc Press Brake Machine
In Stock
The NC Press Brake Machine is a precision-engineered metal bending solution designed for accurate and efficient sheet metal forming operations. Equipped with a numerical control (NC) system, it enables precise adjustment of bending angles, stroke depth, and back gauge positioning, ensuring consistent and repeatable bending result.
Built with a strong and rigid frame structure, this machine provides excellent stability, smooth performance, and long service life even in continuous industrial environments. It is widely used in sheet metal fabrication workshops, automotive component manufacturing, electrical enclosure production, and heavy engineering industries.
Product Specification
Capacity:
Bending: 02 mm to 25 mm Bending.
Length: 1250 mm to 7000 mm.
Standard Accessories:
Variable Stroke Adjustment with Limit Switch
Standard Tooling Set (V-Block & Punch)
Emergency Stop Push Button
Movable Operating Panel with Foot Switch
Front Sheet Support
Lubrication System - Centralized lubrication systems.
Manual Back Gauge
Operation and Maintenance Manual Book
Material test reports.
Machine test reports.
Warranty certificates.
Separate model numbers.
Optional Accessories:
Gooseneck punch
NC Controller
DRO, Motorized Back Gauge.
Motorized Back Gauge.
CNC 2 Axis Back Gauge.
Oil 68 Grade.
Front table for sheet storage.
NC Features. (Optional)
Facilities:
1.7’’ Touch Display. X & Y axis suitable.
2.NC Controller
3.X & Y Axis controller.
4.Timer belt – X axis, Linear – Y axis.
5.Ac servo drive for fast movement.
6.Ac servo drive: Delta
7.Back gauge length: 600 mm
8.Degree correction facilities.
9.Ball screw gauge, LM Guide & Timer belt.
10.Manual fingers.
11.X axis motorized.
12.50 Program storage capacity (Each program: 50 bend)
13.Controller facilities suitable for 2 Axis working.
