H Frame Heavy Duty Power Press Machine
The H Frame Heavy Duty Power Press Machine is designed for high-tonnage and precision metal forming operation such as punching, blanking, bending, stamping, and heavy pressing applications.
Its rigid H-frame structure provides superior strength, balanced load distribution, and excellent alignment, ensuring consistent accuracy and stability during continuous industrial use.
The enclosed frame design minimizes deflection and vibration, resulting in improved die life and uniform output.
Manufactured with heavy-duty materials and precision-engineered components, this machine delivers reliable performance, low maintenance, and long service life.
Ideal for demanding production environments, the H Frame Heavy Duty Power Press Machine is widely used in automotive, fabrication, electrical, and general engineering industries where power, durability, and precision are essential.
H Frame Heavy Duty Power Press Machine
The H Frame Heavy Duty Power Press Machine is designed for high-tonnage and precision metal forming operation such as punching, blanking, bending, stamping, and heavy pressing applications.
Its rigid H-frame structure provides superior strength, balanced load distribution, and excellent alignment, ensuring consistent accuracy and stability during continuous industrial use.
The enclosed frame design minimizes deflection and vibration, resulting in improved die life and uniform output.
Manufactured with heavy-duty materials and precision-engineered components, this machine delivers reliable performance, low maintenance, and long service life.
Ideal for demanding production environments, the H Frame Heavy Duty Power Press Machine is widely used in automotive, fabrication, electrical, and general engineering industries where power, durability, and precision are essential.

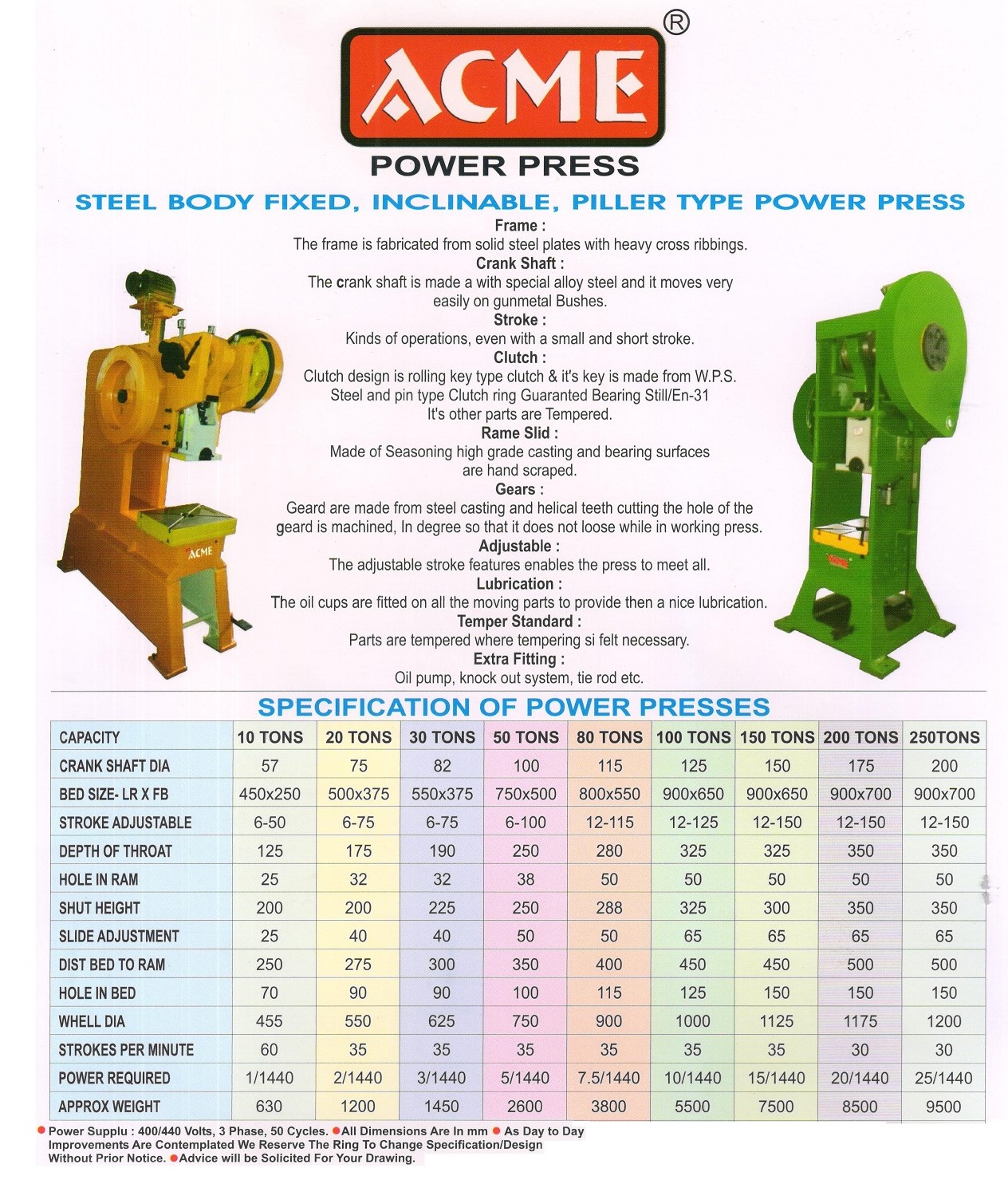

Product Specification
Capacity: - 10 ton to 500 tons.
Frame: - Made from MS steel plates. Full steel body presses.
Clutch:- MS
Shaft:- EN/8
Clutch KEY:- WPS
Connecting ROD: MS
BED: MS
RAM: Graded C.I
Load Wheel: Graded C.I
Main Gear: MS Fabricated.
Pinion Gears: MS. Made from solid steel bars.
Gear teeth: Helical types.
Gun metal bushes: Graded along with test certificates.
Gun metal brass: Fitted in connecting ROD.
Brake: C.I & MS.
Standard Accessories:
Flywheel & Gear Guards
Oil Cups
Lubrication System - Oil Pump.
Motor Pulley
Knockout System
Slide Adj. Spanner
A Pair of Die Clamp
Extra Clutch Key (For 50 Ton & above)
Optional Accessories:
Pneumatic Clutch with Photo Safety Sensors
Two Hand-Operated Push Buttons.
Auto Lubrication System
Electrical Motor, Starter & V-Belt
Stroke Counter
Extra Base Plate
Inclinable Fixed & Adjustable.
Anti-vibration mount
