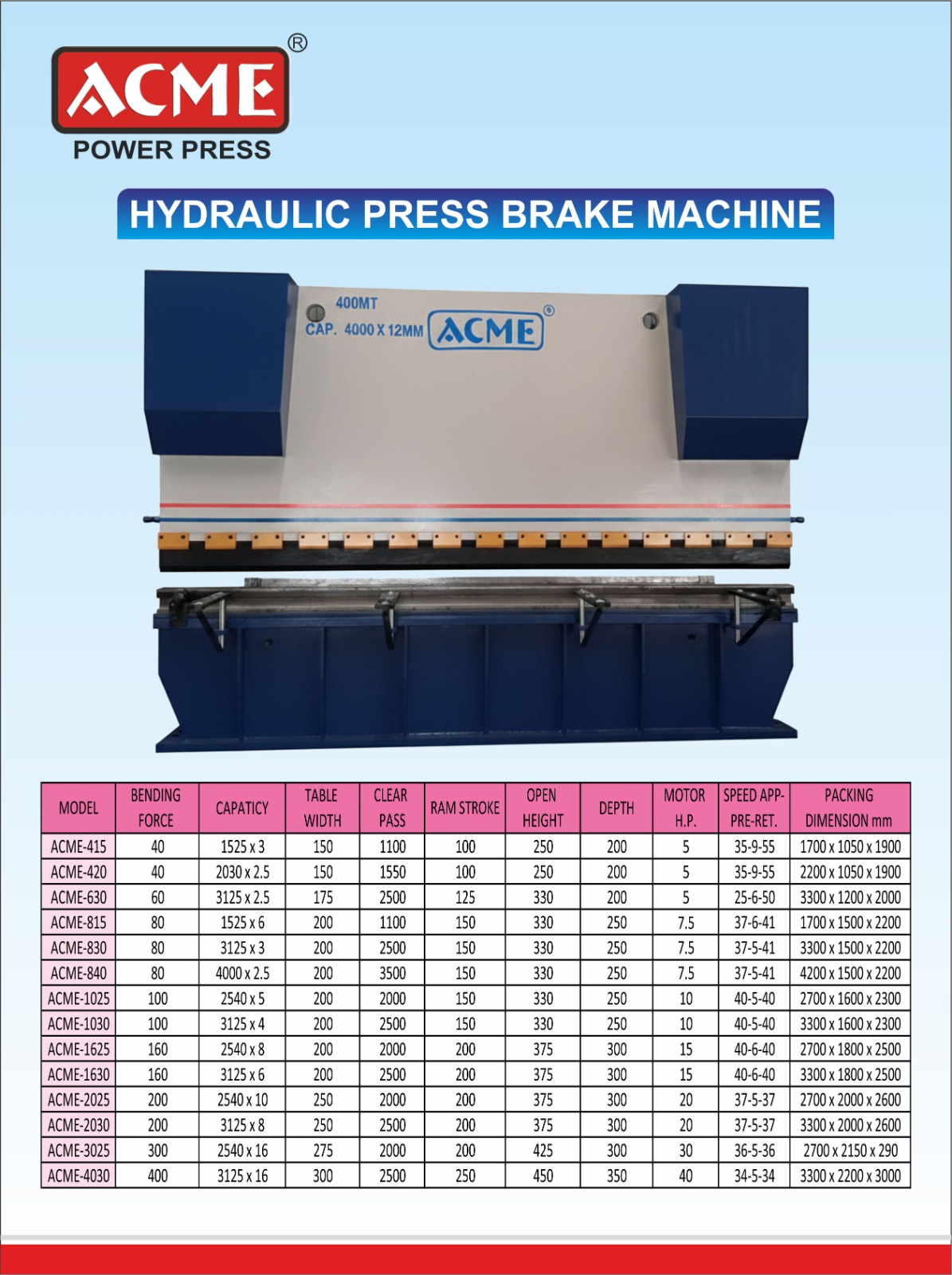

Hydraulic Press Brake 80 Ton
In StockThe Hydraulic Press Brake 80 Ton is a high-precision sheet metal bending machine designed for medium to heavy-duty bending applications. Powered by a robust hydraulic system, it delivers smooth, controlled, and consistent bending force to achieve accurate angles and uniform result across various metal thicknesses.
Built with a strong and rigid frame structure, this machine ensures excellent stability, minimal vibration, and long-term durability during continuous industrial operation. It is widely used in sheet metal fabrication units, automotive component manufacturing, electrical enclosure production, and heavy engineering workshops.
Hydraulic Press Brake 80 Ton
In Stock
The Hydraulic Press Brake 80 Ton is a high-precision sheet metal bending machine designed for medium to heavy-duty bending applications. Powered by a robust hydraulic system, it delivers smooth, controlled, and consistent bending force to achieve accurate angles and uniform result across various metal thicknesses.
Built with a strong and rigid frame structure, this machine ensures excellent stability, minimal vibration, and long-term durability during continuous industrial operation. It is widely used in sheet metal fabrication units, automotive component manufacturing, electrical enclosure production, and heavy engineering workshops.
Product Specification
Capacity:
Bending: 02 mm to 25 mm Bending.
Length: 1250 mm to 7000 mm.
Standard Accessories:
Variable Stroke Adjustment with Limit Switch
Standard Tooling Set (V-Block & Punch)
Emergency Stop Push Button
Movable Operating Panel with Foot Switch
Front Sheet Support
Lubrication System - Centralized lubrication systems.
Manual Back Gauge
Operation and Maintenance Manual Book
Material test reports.
Machine test reports.
Warranty certificates.
Separate model numbers.
Optional Accessories:
Gooseneck punch
NC Controller
DRO, Motorized Back Gauge.
Motorized Back Gauge.
CNC 2 Axis Back Gauge.
Oil 68 Grade.
Front table for sheet storage.
NC Features. (Optional)
Facilities:
1.7’’ Touch Display. X & Y axis suitable.
2.NC Controller
3.X & Y Axis controller.
4.Timer belt – X axis, Linear – Y axis.
5.Ac servo drive for fast movement.
6.Ac servo drive: Delta
7.Back gauge length: 600 mm
8.Degree correction facilities.
9.Ball screw gauge, LM Guide & Timer belt.
10.Manual fingers.
11.X axis motorized.
12.50 Program storage capacity (Each program: 50 bend)
13.Controller facilities suitable for 2 Axis working.
